Matrx E2 Back - Features and Benefits

Foam:

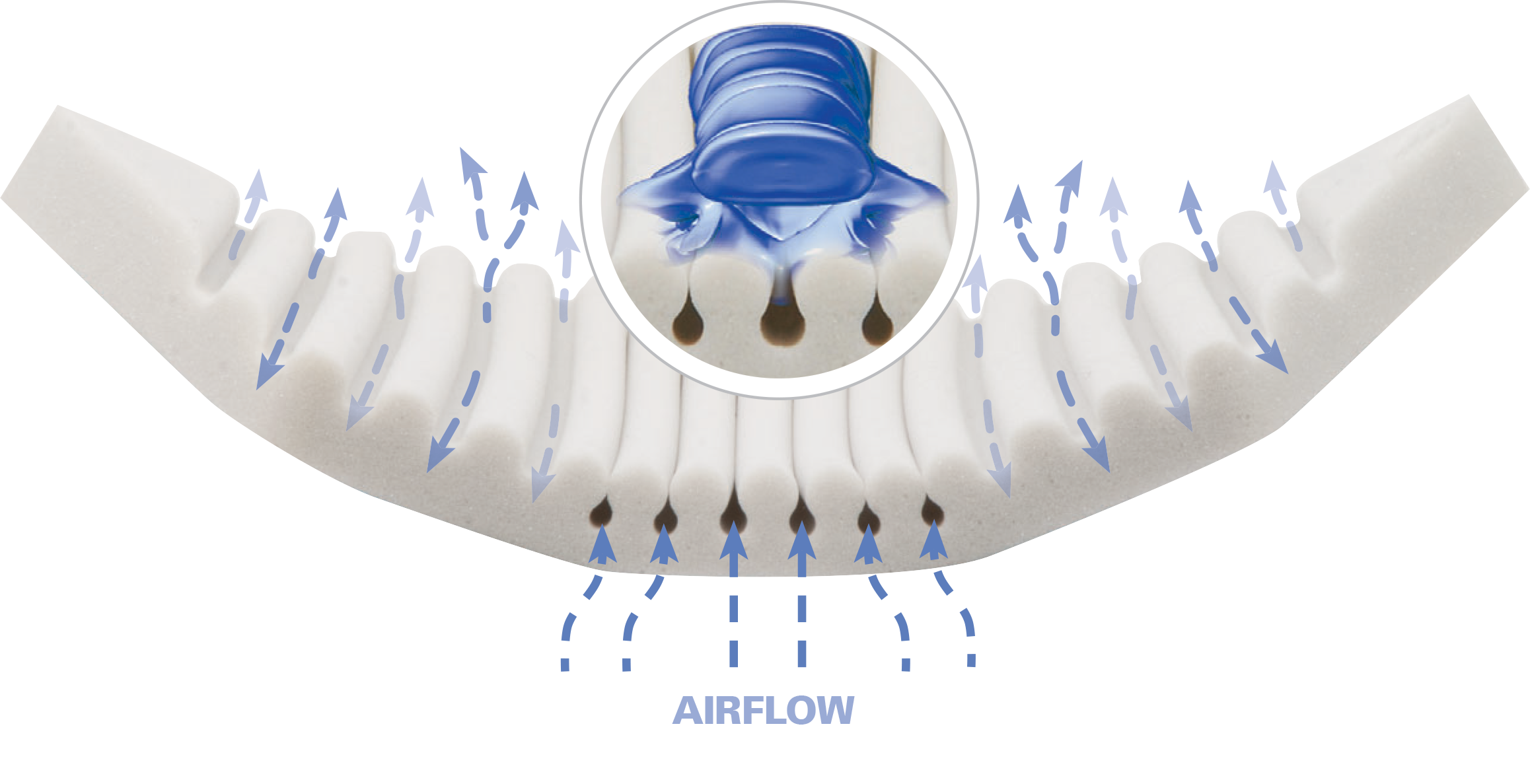

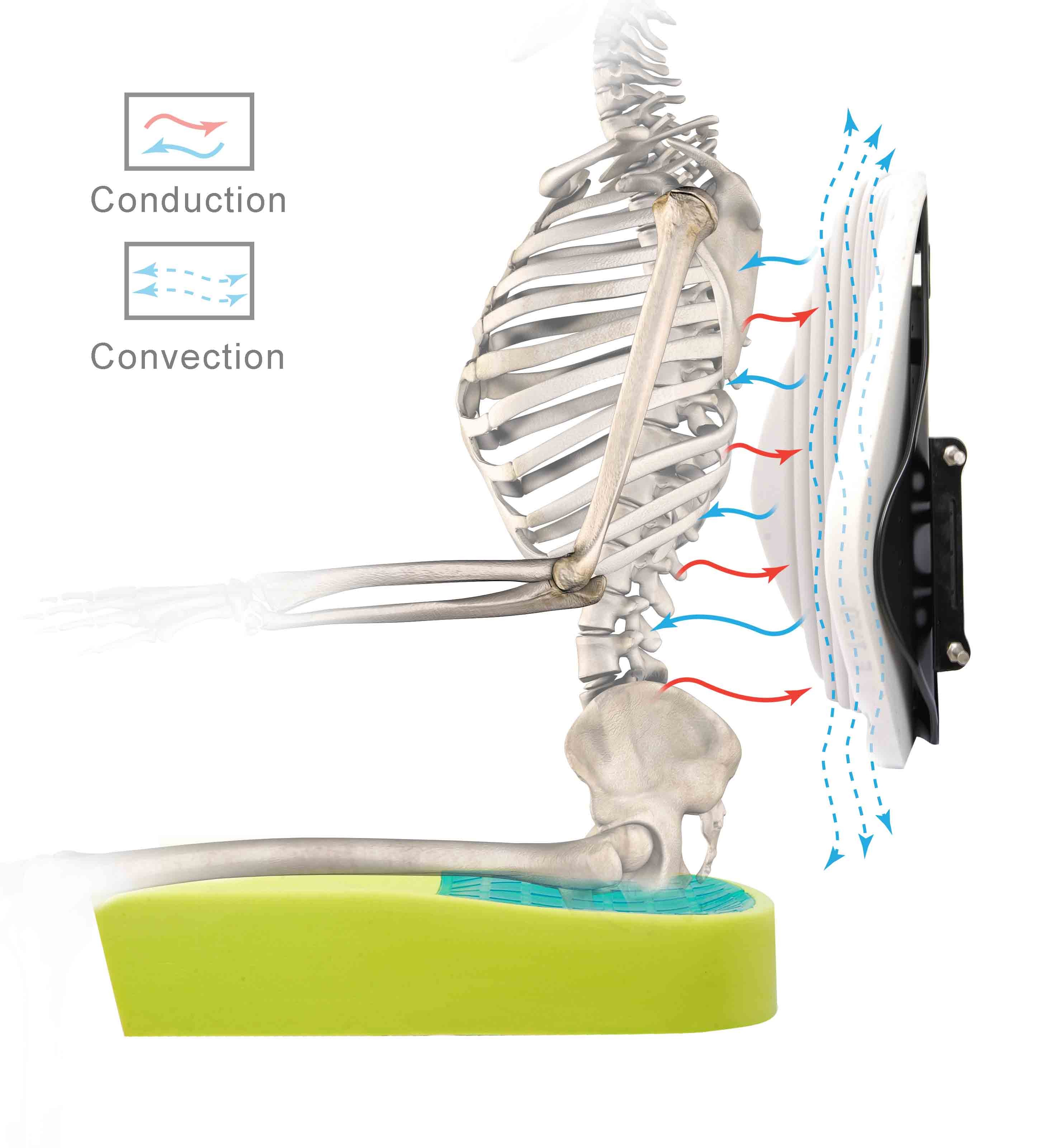

NEW Ripple Foam Technology. Airflow channels for temperature and moisture control, immersion and comfort

• Airflow channels for temperature and humidity control
• Rippled top surface for immersion and comfort
• Solid HR foam backing for support and protection
• Extra immersion and shear reduction in spinal relief area
• Allows perfect fit of foam to back contour

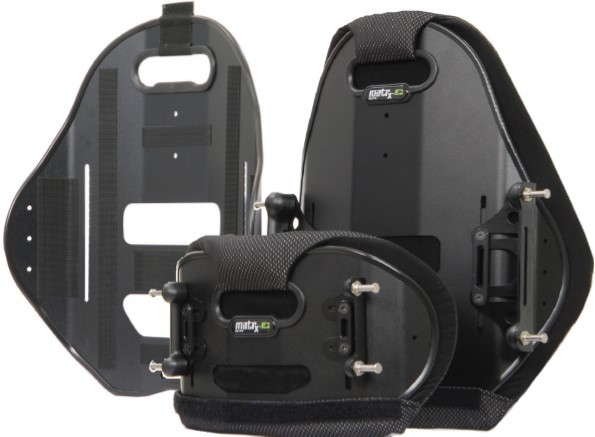

 Back Shell:

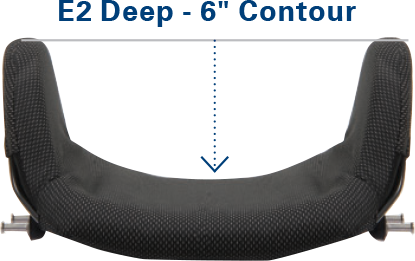

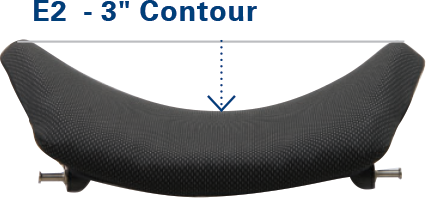

• Available in two contour depths - 3" and 6"

• Lightweight - most models weigh under 1.5kgs / 3lbs
• Weight Capacity: 133kg.
• Three holes for attachment of PostureFlex Abdominal Support at desired position
• Notched cutout for sacral area
• Holes provided for attachment of Headrest and Chest Harness Interface on all backs 14" and higher

Hardware:

• Mini Set hardware standard on backs up to 16" high and Easy Set hardware on backs over 16" high
• "Easy set" hardware installed and adjusted in minutes - adjustments can be made while user is seated in a wheelchair
• Quick release for easy portability
• Infinite adjustment of depth (4"), angle (40°) and rotation
• Fits ¾", 7/8" and 1" diameter back canes
• Adjusts to fit chairs 1" narrower to 1" wider

Mounting Pins:

• Height and width adjustment
• Hardware can be positioned to avoid frame obstacles like arm rests and rigidiser bars
• Fits chair width 1" narrower or wider


Cover:

• Moisture resistant and breathable Meshtex out cover

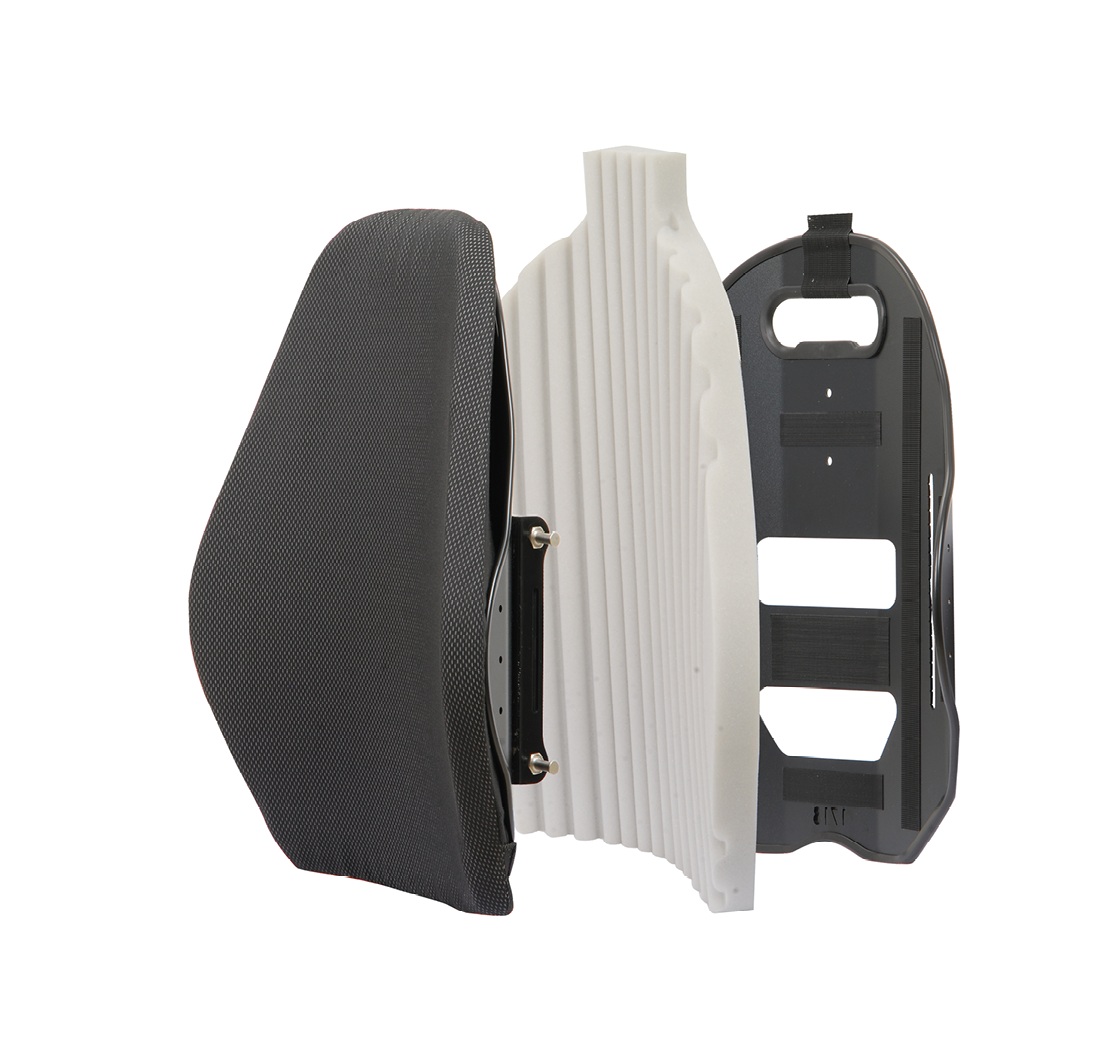

• Foam and cover overlay and roll over the shell for protection and comfort


ACCESSORIES

Easy Fix Laterals:

• Can be installed inside or outside of the back shell
• Height adjustable in vertical slot on back shell
• Compatible with E2 Standard (3") backs 10" and higher

Swing Away Laterals:

• Standard or Offset available
• Compatible with E2 3" contour backs (standard for 10" and higher backs, offset for 12" and higher backs)

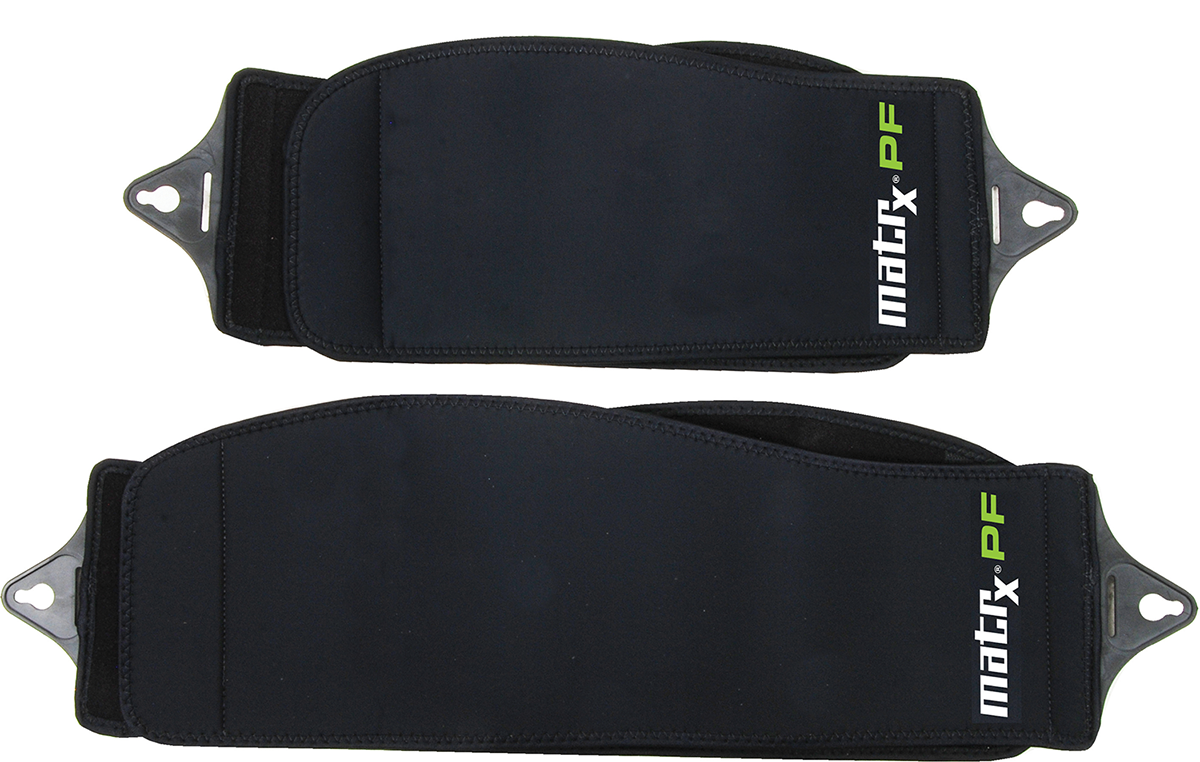

Posture Flex Abdominal Support:

• Three pre drilled mounting heights available
• Width and tension adjustable hook and loop closure
• Easy keyhole attachment
• Quad release tab available for easy independent application


Privacy Flaps:

• Attached using velcro to base of back shell
• Available in 4 sizes


Headrest Interface:

• Moulded lightweight, low profile mounting plate for headrest attachment
• Included as standard with all backs 14" and higher
• Heavy duty option available with extra strong steel headrest mount for extreme tone or heavy user


Chest Harness Interface:

• Provides ability to precisely place shoulder straps


Product code:

E2S#### (width x depth)

Eg, Matrx E2 Standard (3" contour) 18x16 = E2S1816

Full dimensions and sizing information available under Download
